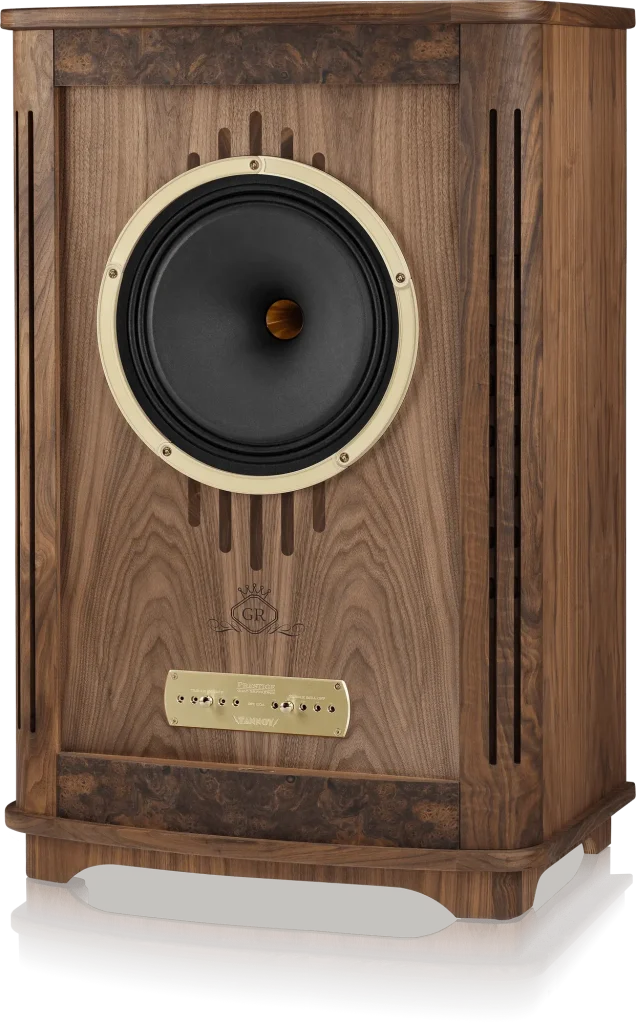

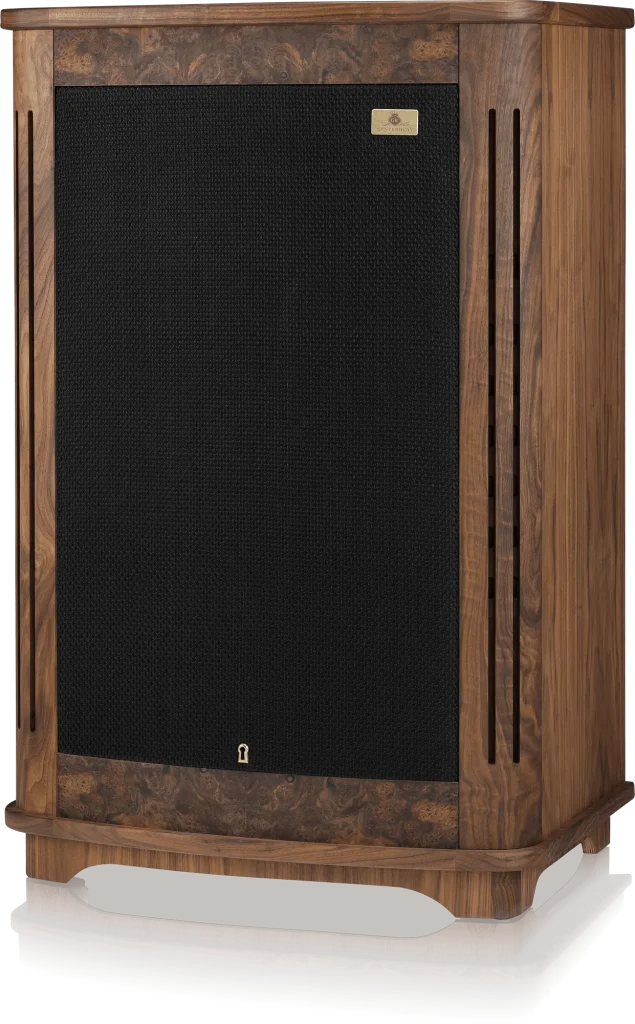

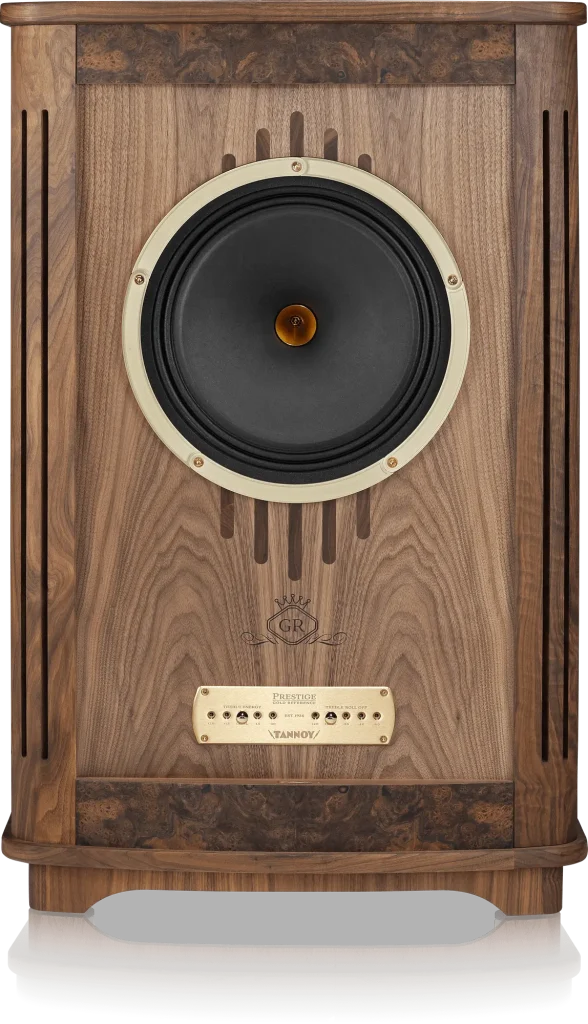

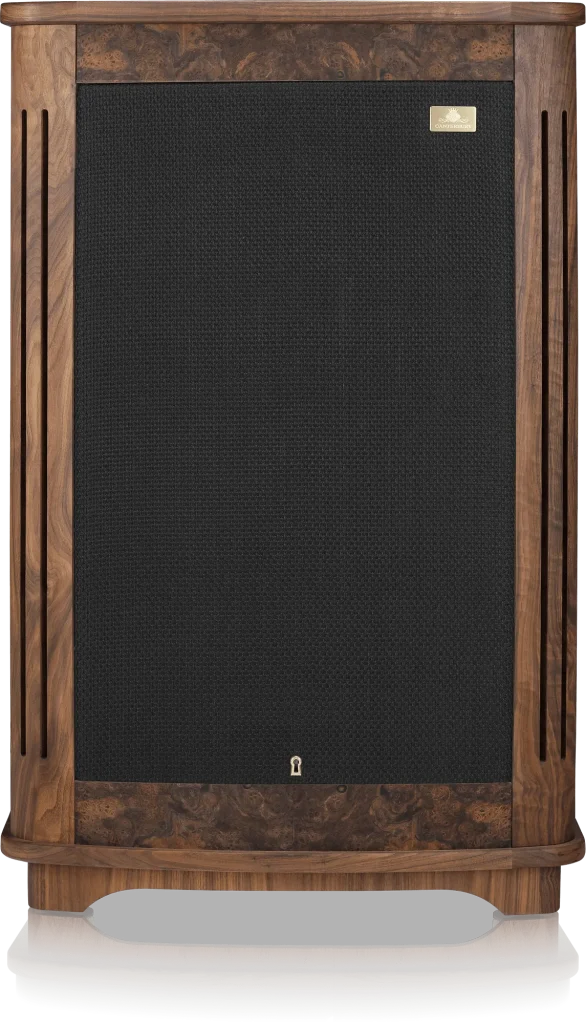

CANTERBURY GR-OW

2-Way Floorstanding 15″ Dual Concentric HiFi Loudspeaker (Oiled Walnut)

Product Features

  • 2 way floorstanding loudspeaker for large sized rooms

  • Dual Concentric driver technology provides class-leading coherence and point-source imaging

  • 15″ highly efficient driver with 96 dB/Watt sensitivity and 600 Watt peak power handling deliver breath-taking dynamics and realism

  • PepperPot WaveGuide powered by Tannoy Alnico magnet system enhances the point source symmetrical dispersion properties

  • Aluminium-magnesium alloy diaphragm and Mylar surround compression driver delivers exceptional clarity and articulation throughout the high frequency range

  • Handcrafted oiled walnut veneered cabinet with hand-selected burr walnut inlays provides a unique and timeless piece of furniture

  • capacitors, low loss laminated core inductors and thick film resistors delivering a more natural and cohesive sound

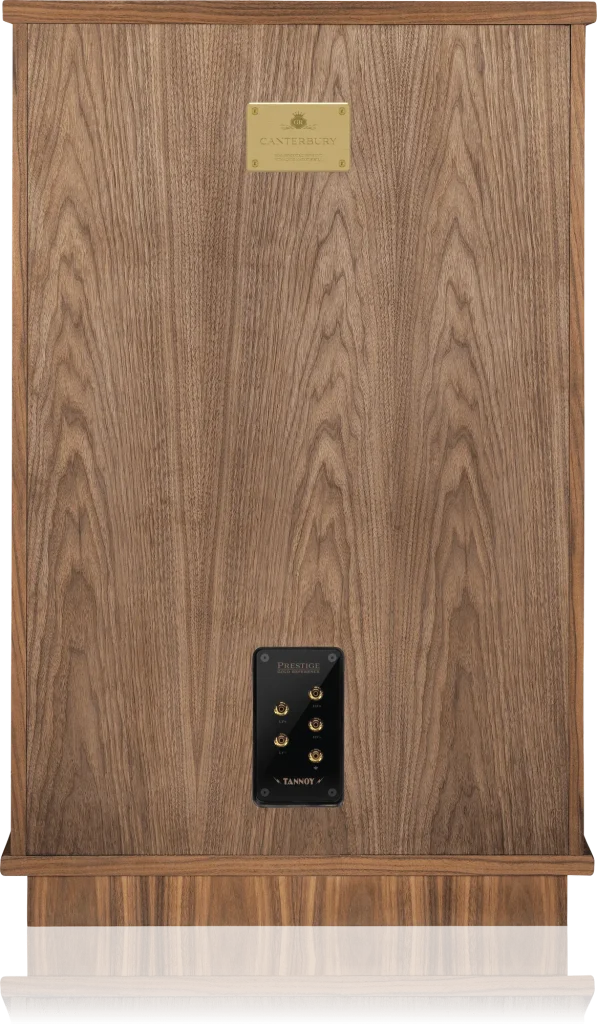

  • bi-wireable binding posts to improve signal transmission and integrity

  • Fifth binding post provides grounding to reduce radio frequency interference and improve midrange clarity

  • High density birch ply cabinet provides extreme rigidity to control low frequency performance

  • Variable Distributed Port system allows low frequency output to be tuned to suit any room dimensions

  • Extensive bracing incorporating DMT (Differential Materials Technology) to couple drivers to cabinets

  • Precision machined gold anodised aluminium metal trims complement the aesthetic of the real wood cabinet

  • Specially formulated Prestige wood wax provided to keep cabinet in pristine condition

  • Tannoy – around 100 years of British sound heritage and innovation

The new 15 inch Gold Reference driver is TANNOY’s most powerful and articulate Dual to date, boasting an incredible 600 watt peak power handling and offering over 96dB efficiency in the 235 litre Canterbury GR cabinet.

The legendary 15 inch Dual has been upgraded extensively for the Gold Reference series with many of the enhancements being ‘trickle-down’ technology from TANNOY’s flagship Kingdom Royal development project. The low frequency section of the GR driver has a new fibre enriched paper pulp cone material to realise further improvements in the cone’s mechanical characteristics. The cone is terminated with a twin roll surround of impregnated fabric for improved damping characteristics. The Canterbury GR’s HF unit marks a significant leap forward in the technology and performance comprising a new aluminium-magnesium alloy compression driver diaphragm that has been heat treated to further improve it mechanical integrity under HF loads. The use of new Mylar surround materials offer improved damping and motor cooling, resulting in exceptional clarity and articulation throughout the HF range. Capable of high-volume listening without fatigue, the Gold Reference Dual brings even greater naturalness and presence to the TANNOY Canterbury loudspeaker.

PRESTIGE GR CANTERBURY GR-OW

Technical Specifications

System

Frequency response 1  28 Hz – 27 kHz (-6 dB)
Recommended amplifi er power  20 – 300 W RMS
Power handling (IEC)  150 W continuous, 600 W peak
Nominal dispersion  90 degrees conical
Sensitivity 2  96 dB (1 W @ 1 m)
Impedance  8 Ω
Maximum SPL 2  118 dB continuous, 124 dB peak

Components

Low frequency dual concentric  380 mm (15″) with paper pulp cone and twin roll impregnated fabric surround, 52 mm (2″) round wire voice coil
High frequency dual concentric  52 mm (2″) aluminium/magnesium alloy dome with round wire voice coil

Crossover

Frequency  1.1 kHz
Type  Bi-wired, hard wired passive, low loss. Time compensated 2nd order low pass, 2nd order high pass
Adjustment  ±3 dB over 1.1 kHz to 27 kHz shelving, +2 dB to -6 dB per octave over 5 kHz – 27 kHz slope

Enclosure

Type  Dual variable distributed ported
Connectors  5 x 4 mm 24 ct Tannoy customized binding posts
Dimensions (HWD)  480 x 680 x 1100 mm (18.9 x 26.8 x 43.3″)
Net weight  68 kg (149.6 lbs)
Construction  19 mm (¾ “) MDF with plywood internal bracing, heavily damped
Finish  Walnut veneer and high acoustic transparency nylon grill cover

Accessory pack (included)

Bi-wire bridge connectors
Prestige wood wax
Felt pad
Grille key
Metal feet
Welcome pack documentation

1 Average over stated bandwidth, measured at 1 metre on axis.
2 Unweighted pink noise input, measured at 1 metre in half space.

DOWNLOADS & PRICE

£32995

2023 Price / 價格
