DC BLOCKERS | EVO3 SYNCRO UNI

THE PERFORMANCE SERIES

EVO3 SYNCRO UNI

「Syncro Uni」採用了獨特的直流消除電子技術，重新平衡 0V 線上的電源正弦波，明顯降低或消除了變壓器的噪訊。這項精密設計的產品既可以獨立使用於單一音響設備，也可與 IsoTek 的電源淨化器結合使用，升級整個系統並在所有輸出插座中提供完全重新平衡的正弦波。

Syncro Uni incorporates unique DC-cancelling electronics that rebalance the mains sine wave on the zero volts line to dramatically reduce/silence transformer hum. This sophisticated product can be used independently for a single component, or in combination with another IsoTek power cleaner as an upgrade and to deliver a fully rebalanced sine wave across all output sockets.

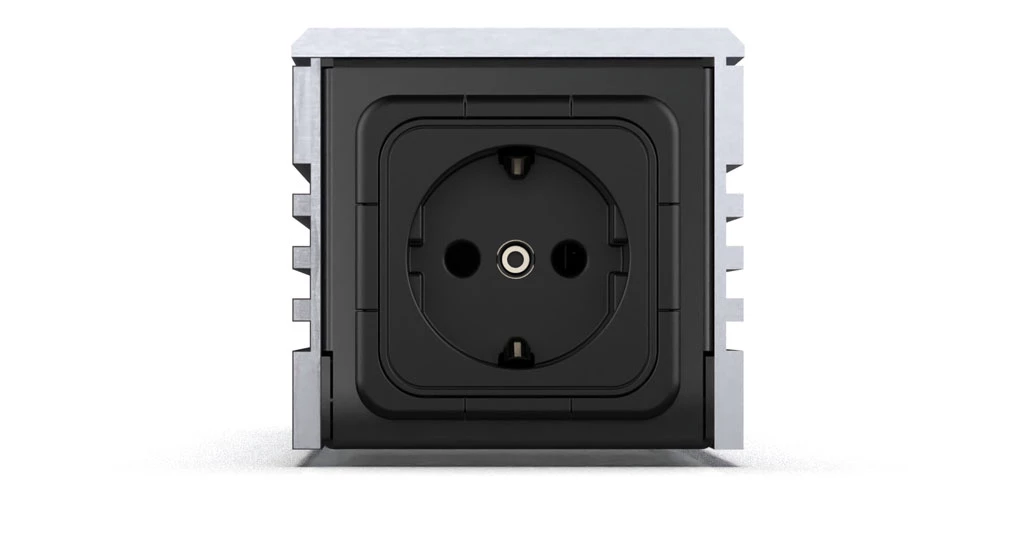

AVAILABLE OUTLETS

FEATURES

適用於所有音響、視聽或網路系統
Suitable for all audio-, AV- and network-systems

主電源上的直流消除
DC on the mains cancellation

通過替換 0V 線路上的電源正弦波來減少 / 消除變壓器噪訊
Reduces/eliminates transformer hum by replacing the mains sine wave on the zero volts line

可與現有的 IsoTek 電源淨化器一同使用，以提升效能
Use before existing power cleaners for performance upgrade

全星型接地網絡
Fully star-earthed network

多股6n無氧銅（OFC）內部鍍銀線材，並帶有FEP（氟乙烯丙烯）絕緣
Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric

適用於標準 IEC C13（10A）或 C19（16A）電源線
Use with standard IEC C13 (10A version) or C19 (16A version) power cable

提供 10A 和 16A 版本，英國（UK）、歐盟（EU）、美國（US）、澳大利亞（AU）、中國（CH）等規格
10A and 16A versions with UK, EU, US, AU & CH outlets available

設計

「Syncro Uni」的設計目的在於明顯減少或消除設備（通常為功率擴大機）內部變壓器的機械振動所產生的噪訊。此外，「Syncro Uni」還可以作為一種「預先濾波」裝置，可搭配任何電源線或電源處理系統使用。

「Syncro Uni」安裝於一個由鋼材和鋁合金打造的外殼中，尺寸為長 215mm、寬 75mm、高 70mm。採用了獨特的直流消除電子技術，用於重新平衡零伏線上的主電正弦波，這大幅減少或消除了變壓器的噪訊，此電路與主電源同步，提供完美對稱的正弦波，當與任何高端音響設備一起使用時，可顯著提升音質。內部配線採用的是最高品質的材質；純 6N 無氧銅導體絲經過鍍銀處理，提供了低電阻和高載流量。在導體保護上，使用了聚四氟乙烯（PTFE）絕緣體，確保了內部供電系統的最高品質。

IsoTek 的產品內部佈線與電源線產品相得益彰，這種設計思路著重於在整個傳輸線路中，無論是訊號傳輸線或是電源線，都保持設計與材質特性的一致性。這一經常被忽略的領域事實上是提升音響系統整體性能和聲音品質的關鍵環節。

DESIGN

The Syncro Uni is designed to dramatically reduce/silence transformer hum, when transformers within equipment, typically power amplifiers, mechanically vibrate. Syncro Uni can also be used as a ‘pre-filter’ device that can be used with any power cable or power conditioning system.

Housed in a steel and aluminum chassis measuring 215mm in length, 75mm wide and 70mm high. Syncro Uni incorporates unique DC-cancelling electronics that rebalance the mains sine wave on the zero volts line, to dramatically reduce/silence transformer hum; the circuit synchronizes the mains supply to provide a perfectly symmetrical sine wave, which also delivers significant sonic improvement when used with any hi-fi separates. The internal wiring is of the highest standard, pure 6n oxygen free copper conductor strands with silver-plating offer low resistance and high amperage. A PTFE dielectric is used to protect the conductors as well as giving the ultimate internal power delivering system.

The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.

正弦波校正 SINE WAVE CORRECTION

從高品質聲音的需求來看，電源需要兩個重要條件：1.必須有穩定的50或60Hz正弦波，來源要是低阻抗的。2.沒有無線射頻噪訊干擾。
低阻抗確保無論周圍區域使用多少電力，電壓都能維持相對穩定。然而，實際上我們可能會有約5%的電壓波動。主電力在50或60Hz時的極低阻抗（低於1歐姆）在接近無線電頻率（> 50歐姆 > 100千赫）時無法保持，反而充當天線，吸引無線射頻噪訊。

IsoTek的電力淨化電路的設計目標是在保持安全性的同時，降低阻抗，並在音訊頻率範圍內進行有效校正。這不僅僅是基於良好的電力工程判斷，同時也符合電氣安全規範，經過獨立評估。

From a high quality audio point of view, mains electricity needs two factors; a nice 50 or 60Hz sine wave supplied from a very low impedance source, without radio frequency noise. The low impedance makes for a near constant voltage regardless of how much power is used in the surrounding area. In reality we can typically expect around 5% fluctuation. The very low impedance of the mains, which is way below 1 ohm at 50 or 60Hz is not maintained when approaching radio frequencies (> 50 ohms > 100 kHz) and acts as an aerial (antenna) inviting RF noise.

IsoTek’s power cleaning circuits are designed to reduce impedance whilst remaining safe as well as correcting well into the audio frequency bands. This is not only a judgment from sound electrical engineering, but it also follows the codes of electrical safety, which are independently assessed.

進階組件 HIGH GRADE COMPONENTS

IsoTek 每項產品用的都是頂級電子元件，許多都是特製的，並使用高品質金屬材料。品質的追求不僅止於零件，更延伸至印刷電路板（PCB），該設計能維持高電流輸出和超低電阻，使用的銅量高達一般標準的八倍，再加上純銀鍍層。

內部配線則選用高純度銅結合鍍銀工藝，絕緣材料是航太級的氟化乙烯丙烯（FEP）或 IsoTek 獨有的虛擬空氣介電（VDA）技術，纏繞 FEP 管再加上 FEP 絕緣層，確保了卓越的傳輸表現，打造出低阻抗、高功率的內部供電系統。

Every IsoTek product uses the finest grade electrical components, many custom made, using the highest quality metals and materials which are specifically designed for purpose. Quality doesn’t stop at parts but also extends into the PCB designs, which maintain high levels of amperage and extraordinarily low levels of resistance, using up to eight times the general standard of copper prior to pure silver plating.

Internal wiring also uses high purity coppers combined with silver plating, with either Fluorinated Ethylene Propylene (FEP) dielectric or IsoTek’s Virtual Dielectric of Air (VDA), where a FEP tube is wound around the conductor before an extruded FEP dielectric protects this construction giving unrivalled performance and the ultimate low resistance, high performance internal power delivery system.

多股6N OFC無氧銅 MULTI 6N OFC AG

正如音響用家期待的，IsoTek 產品達到最高標準的內部佈線，使用純度為 6N OFC（氧化銅 – 99.9999%）導體線，表面鍍銀，提供低電阻和高電流。採用 FEP 導管來保護導體線，同時提供絕佳的內部電力傳輸系統。

IsoTek 的內部佈線與 IsoTek 電源線系列ㄧ起使用可確保持設計和材料特性的共通性。

As one would expect, the internal wiring of any IsoTek product is of the highest standard, pure 6n OFC (Oxygen Free Copper – 99.9999%) conductor strands with silver-plating offer low resistance and high amperage. An FEP dielectric is used to protect the conductors as well as giving the ultimate internal power delivery system.

IsoTek’s internal wiring synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.

3年保固 THREE YEAR WARRANTY

IsoTek 始終堅持以最高標準的客戶服務。為體現我們對產品品質與客戶滿意度的持續承諾，將提供將標準 2 年的產品保固期免費延長至 3 年的機會。

您請簡單地進行產品註冊，您就可以安心享有此項增值服務。IsoTek 尊重並保護您的個人隱私，絕不會未經您許可而與第三方分享您的個人資料。

As part of our on-going commitment to the highest standards of customer service, IsoTek offers you the opportunity to extend the standard 2 years product warranty to 3 years, free of charge.

Simply REGISTER YOUR PURCHASE with IsoTek. We do not share your personal details with any third parties without your permission. To read our Privacy Policy please CLICK HERE.

SPECIFICATIONS

導體：純 6N 無氧銅導體
CONDUCTORS：Silver plated OCC copper conductors

電介質：虛擬空氣介質（VDA）
DIELECTRIC：Virtual Air Dielectric (VAD)

電源輸入：10A IEC C14或16A IEC C20
MAINS INLET：10A IEC C14 or 16A IEC C20

輸出電壓：100-240V
MAINS VOLTAGE：100-240V

輸出頻率：50-60Hz
MAINS FREQUENCY：50-60Hz

尺寸（寬 x 高 x 深）：75 x 70 x 215mm
DIMENSIONS：75 x 70 x 215mm (WxHxD)

重量：1.1Kg
WEIGHT：1.1Kg

DOWNLOADS

CONNECTION DIAGRAM

MANUAL

PRESS RELEASES

PRODUCT VIDEO

價格 PRICE 2024

£699.00（當地售價）
